◆ CPU

Octa Core 2.0 GHz

◆ RAM

Capacity    6GB

◆ ROM Flash

Capacity    64GB

◆ Expansion Card

Capacity    Support up to 512GB

◆ Camera

Front Facing：8MP FF

Rear Facing：6MP AF with 4 LED flash Lights

◆ Speaker

Box：Built - in 2 Stereo speakers

◆ MIC

Built-in：1 Internal microphone

◆ Audio Jack

Built-in：3.5mm Audio jack

◆ Product Form

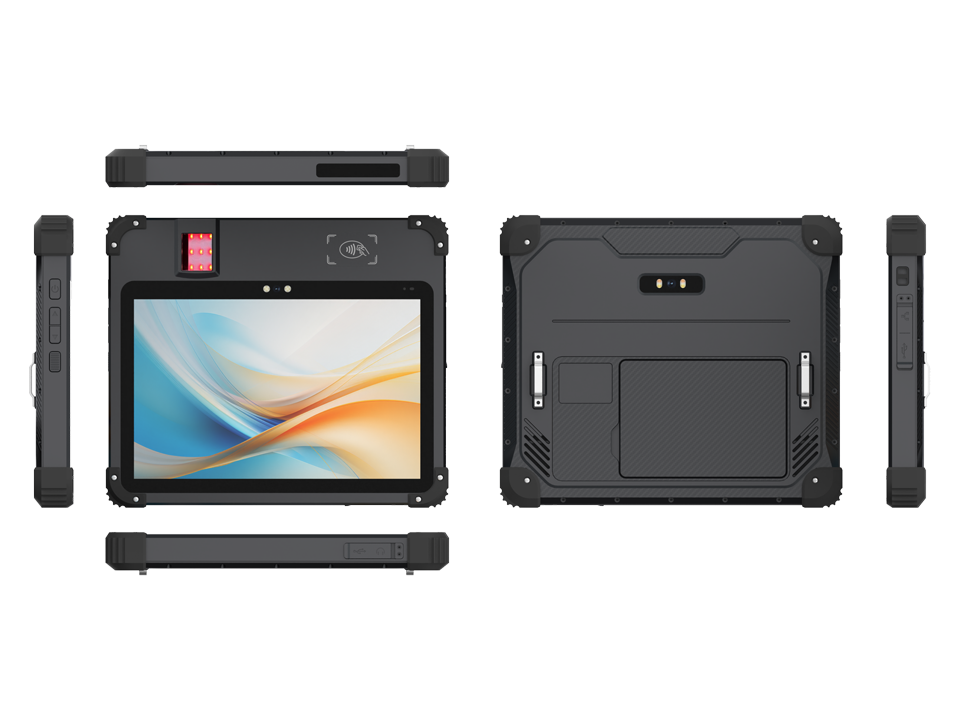

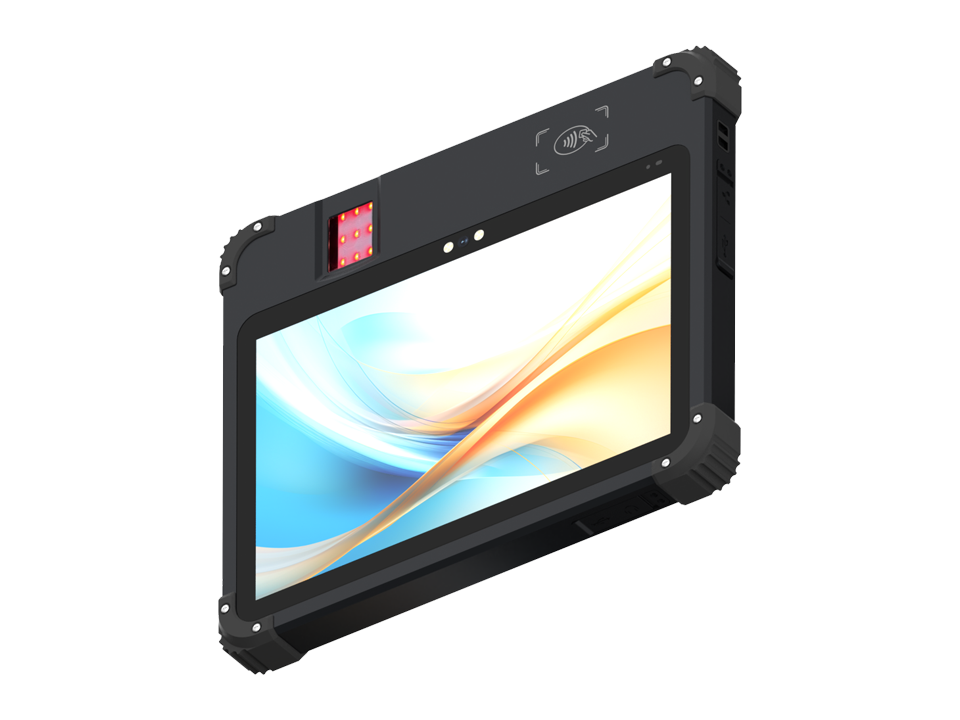

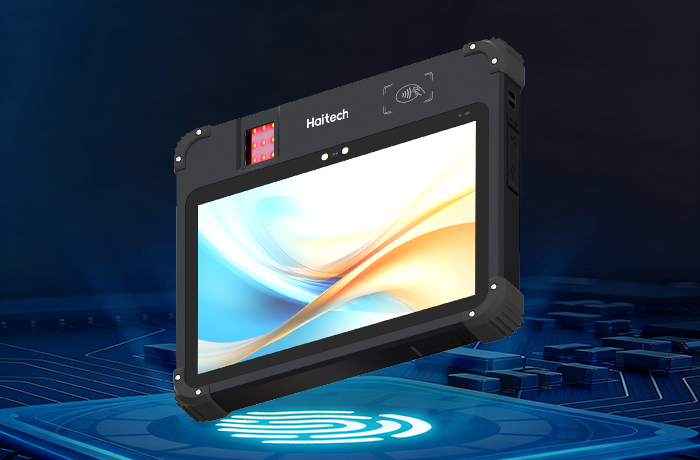

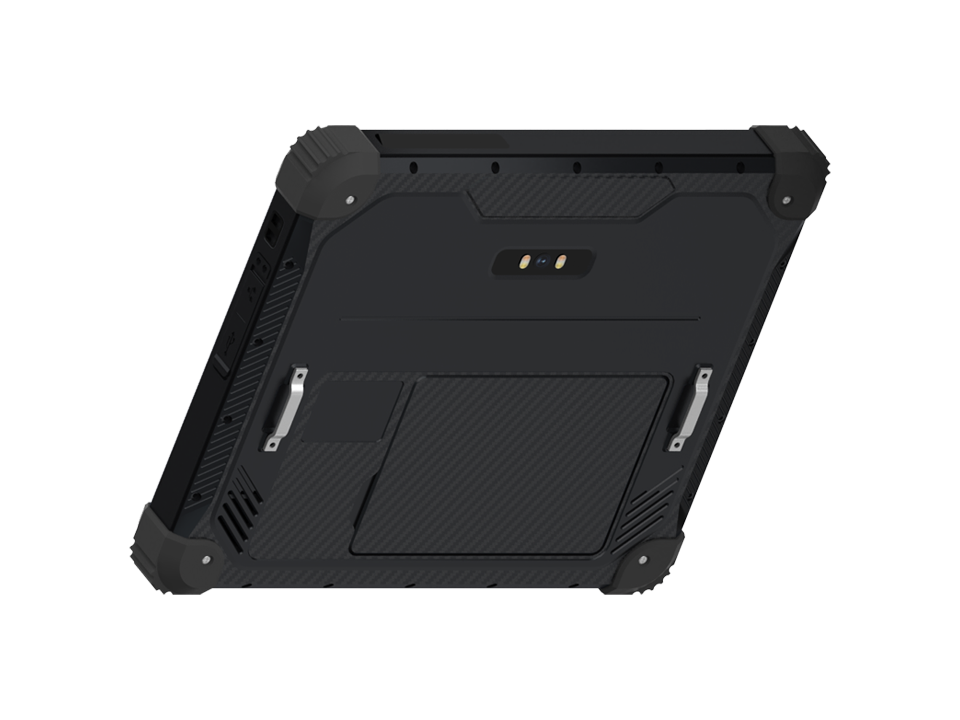

Product Form：Rugged Biometric Tablet

◆ LCD

Screen Size： 10''

Screen Resolution： 1280×800, scratch - resistant, 10 touchpoints

◆ Battery

Type：Removable battery

Capacity：3.85V/10000mAh

◆ WIFI

WIFI module + BT    802.11 a/b/g/n/ac + Bluetooth 5.0

◆ LTE

Built - in    3G/4G/LTE/Ethernet

◆ GPS

Built - in    Supported

◆ Interfaces

Type    1 Type - C, 1 USB - A

◆ Expansion Slot

Type    2 Nano SIM card slot, 2 PSAM slot

◆ Buttons

Type    1 Up/down volume button, 1 Power button, 1 Quick button

◆ Status Indicators

Type    2 LED status indicators

◆ Quick Button

Support    Supported

◆ RTC Function

Spec    Support hardware RTC, less than 3 seconds fault within 24 hours

◆ Fingerprint Scanner

Type：    Optical fingerprint scanner FAP30, with LED

Specs：    Miaxis SM - 93M: Platen Size (WL):21.4mm×26.4mm; Sensing Area (WL):20.32mm×25.40mm; Image Size:400×500 pixels; Image Resolution:500 dpi; Gray Level:8 bits, 256 level

Format Support：    ISO19794 - 2/4, ANSI 378/381, WSQ

OS Support：    Windows 7/8/10/11, Android, Linux, embedded systems

Work Voltage：    5.0V

Operating Temperature：- 10°C to 55°C

Operating Humidity：10 - 93% RH

ESD：Contact: ±8 KV, Air: ±15 KV

Certifications：FCC, CE, RoHS, FIPS 201/PIV 071006, FBI Mobile ID FAP30

◆ Contactless Card Reader

Standard    ISO 14443 A/B

◆ Accessories

Charger：Input:100 - 240V, 50/60Hz; Output:9V/2A; Fast charging capability, Type - C

USB Cable：Type - C USB cable

Stylus：Support signature capturing

Carry Bag：Specialized rugged bag for tablet and accessories

Silicon Cover：Strong Silicon Cover

Hand Strap：Back - Hand Grip / Holding Strap

Glass Protector：Tempered Glass Screen Protector

◆ Application

Scenarios    Citizen Identity, Voter Verification, Border Control, KYC

◆ Note

Built - in    3G/4G/LTE/Ethernet

◆ LTE

Parameter Change    Reserve the right to change the parameters without prior notice
